CS700 Screw Cap Recapper

Price on request

Compose your product

Request quote

Automatically (de)cap screw cap tubes

Cap, decap, and recap an entire rack of tubes in less than 30 seconds

A side view of the CS700 next to three racks of tubes precapped with pink, purple, and light green screw caps respectively

The Micronic Screw Cap Recapper CS700 line can cap, decap or recap a full rack of screw cap tubes in a single action. Designed to improve efficiency, the Micronic Screw Cap Recappers can be used as a stand-alone instrument or as part of a fully automated laboratory environment.

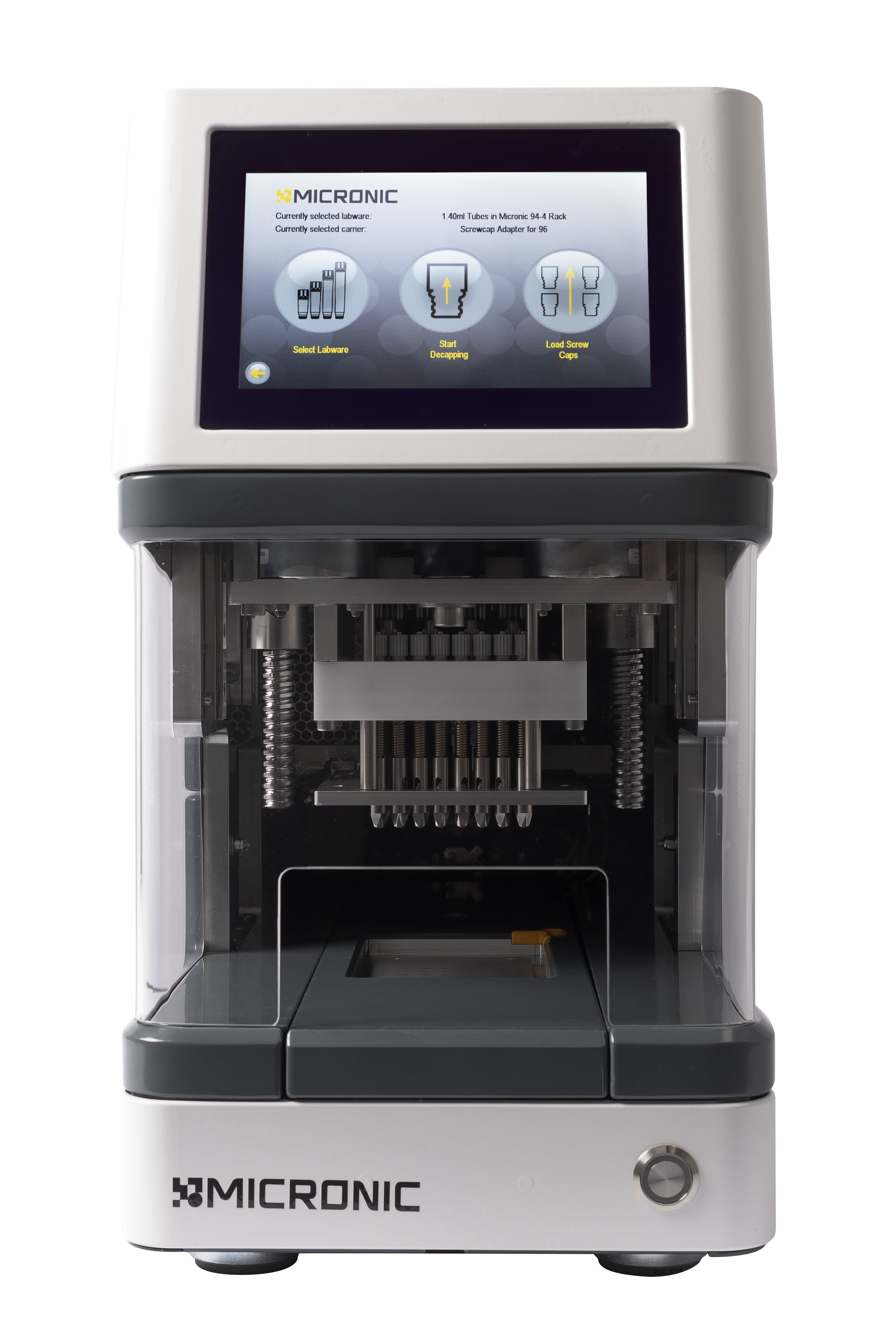

With a graphical touch screen interface, users can easily select the rack they need to cap, decap or recap without using different adapters for different tube sizes. The CS700 uses a precisely determined torque value for optimal sealing quality, thus minimizing sample evaporation while maximizing the integrity of samples.

Frequently Asked Questions

The CS700 can cap or decap screw cap tubes in 96, 48, or 24-well racks. The unit can uncap a rack of tubes, unload the caps into a carrier rack. load caps from a carrier rack onto the capping heads, and cap a rack of tubes.
Yes. The CS700 can process partial racks of tubes.
Yes. The CS700 comes with an API and can be integrated into other automated systems. Please contact us with any specific questions.”
The CS700 is compatible with Micronic and other brand tubes (please contact us to verify compatibility) from 0.30ml to 6.00ml.”
Yes. We offer demos for potential customers. Please contact us if interested, and we will schedule a time that works for you.”

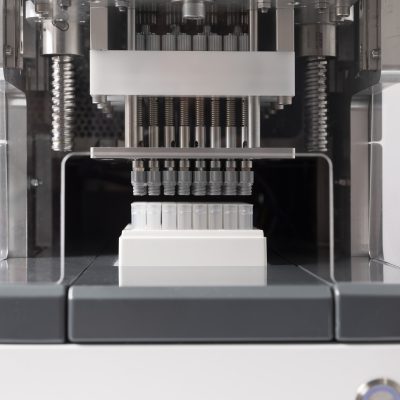

A close-up view of the CS700 decapping a rack of 96 tubes precapped with grey screw caps

Product features

Compatibility

CS700 models are available for 96-, 48-, and 24-format internal and external thread screw cap tubes.

Optimal sealing quality

The CS700 uses a precisely determined torque value to consistently and reliably (de)cap screw cap tubes.

Automation-friendly

The CS700 is equipped with an interface (API) for integration into a fully automated environment.

User-friendly

The CS700 has a graphical touch screen for users to quickly select the labware they’re working with.

  • Tube compatibility Up to 6.0ml in size
  • Rack compatibility ANSI/SLAS standard 96-format racks
  • Models CS700 (96-format), CS710 (48-format), CS720 (24-format)
  • Thread Type TRE (external thread tubes) or TRI (internal thread tubes)
  • Cycle time Less than 30 seconds per rack
  • Size 23.22" x 9.9" x 18.1"
