HT700 Tube Handler

SKU: MP35500

Price on request

A New Sample Management System

For next level tube sorting

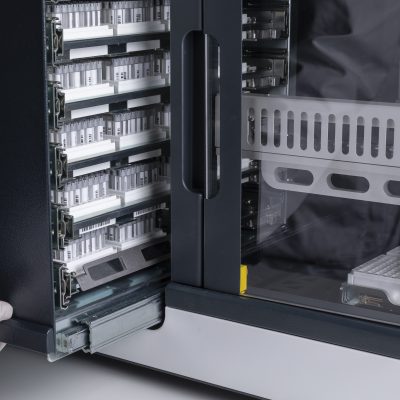

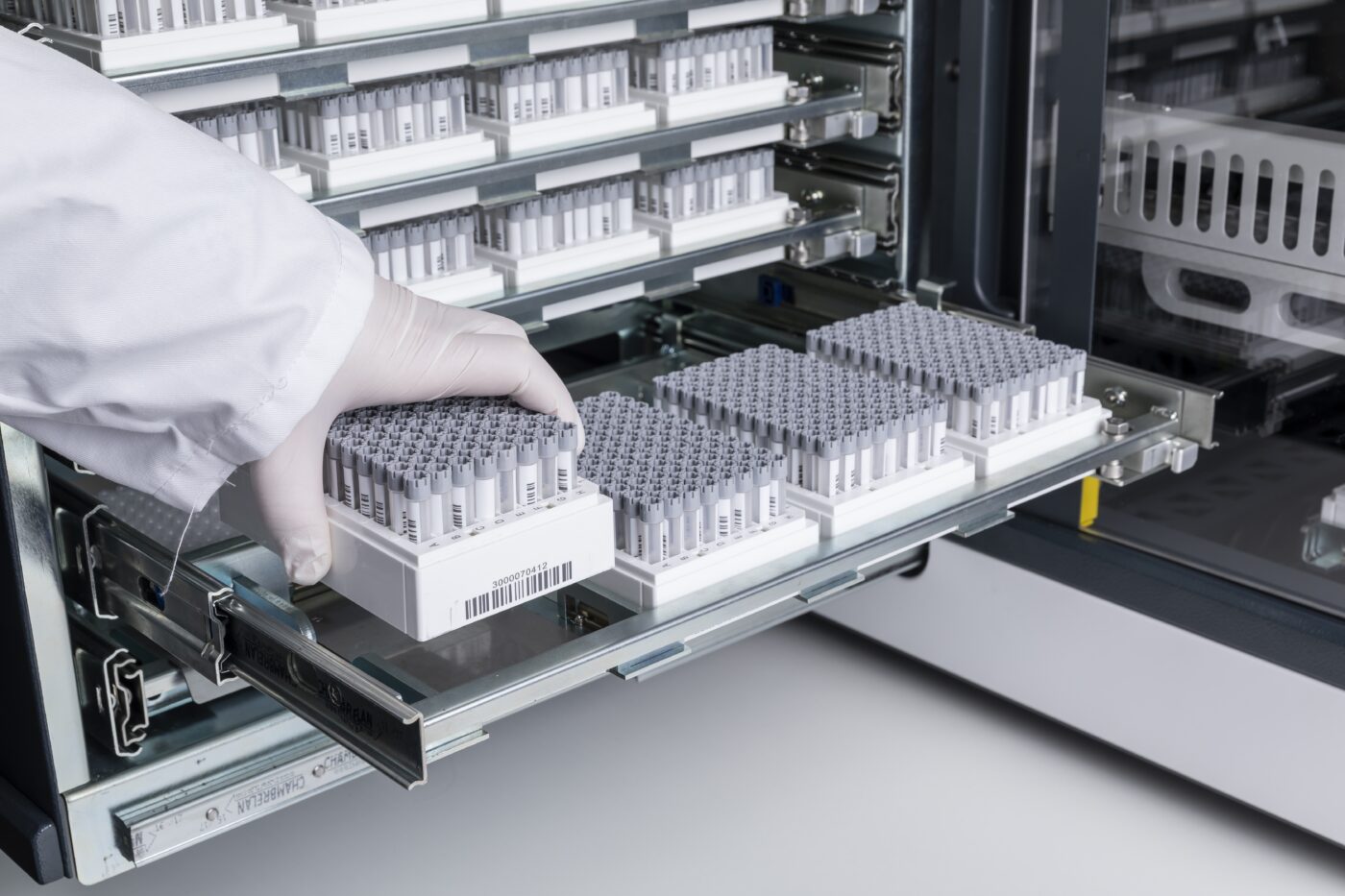

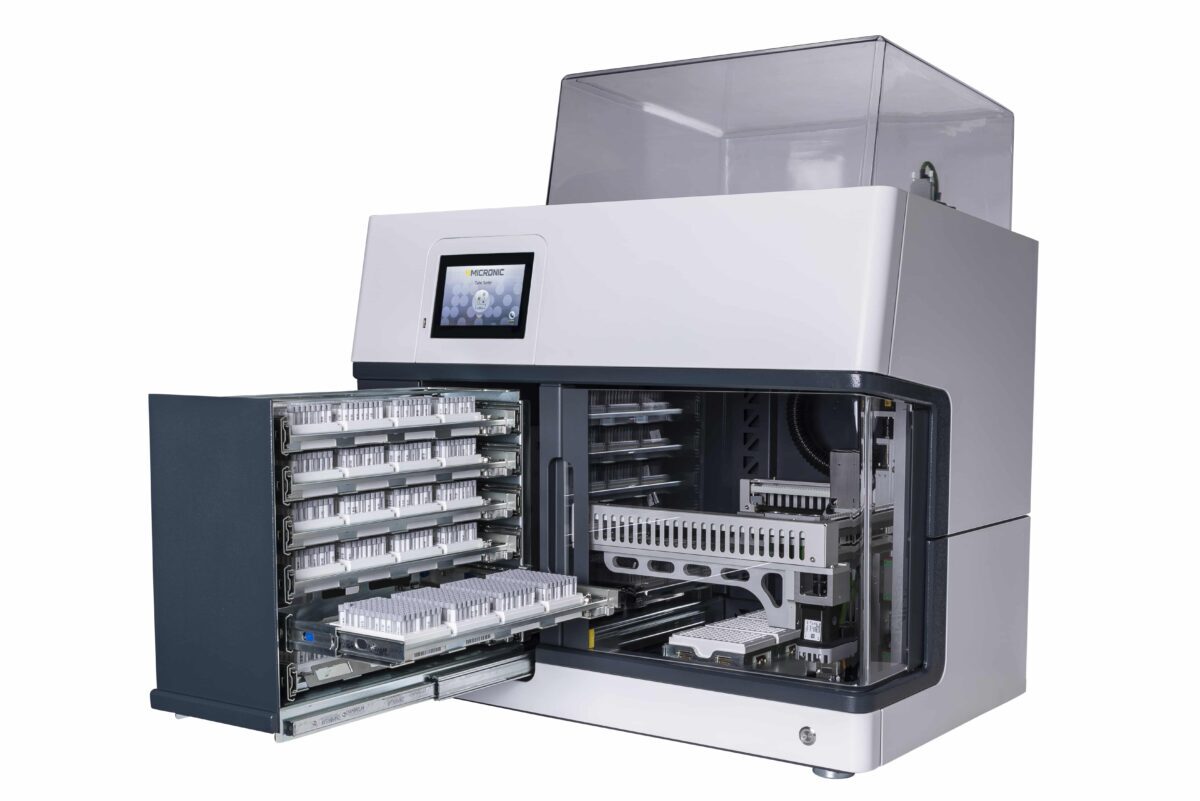

HT700 in action with open tray and racks of Micronic hybrid tubes

The Micronic Tube Handler HT700 is an automated sample management system that can sort sample storage tubes quickly, efficiently, and safely. Due to its unique “cassette” design, the HT700 can hold a large capacity of source racks while taking up minimal space in the lab.

After the user loads a “pick list” (generated from a LIMS system) into the HT700, the system will automatically start to select and place the desired tubes into target racks. Then, once the HT700 completes the sorting process, a log-file will be created to help users track the samples that were selected.

Frequently Asked Questions

Tubes in 96=well (ANSI/SLAS standard) format racks. Compatible tube sizes are 0.30ml, 0.40ml, 0.50ml, 0.75ml, 0.80ml, 1.10ml, and 1.40ml. Please contact us for tube compatibility questions.
No. The HT700 uses a built-in touch screen interface for operation.
The HT700 has 24 source rack positions and 3 destination rack positions.
Yes. The HT700 can scan the 2D Data-Matrix barcode on the bottom of the tubes as well as the 1D rack barcode.
An automated machine in action

Product features

Fast Operation

The HT700 can sort up to 800 sample tubes per hour because of the minimum distance between the sample being picked and the target rack.

Traceability

The HT700 has a unique integrated dual 1D rack barcode and 2D Data-Matrix code check.

Protection

The HT700 was designed as an enclosed system for operator safety. There’s also a separate safety stop to ensure sample protection.

User-friendly

The HT700 has a user-friendly software that is intuitive and easy to navigate.

  • Throughput Up to 800 tubes per hour
  • Rack compatibility 96-well format racks (ANSI/SLAS standard)
  • Tube compatibility Micronic 0.30ml-1.40ml tubes & other brands
  • Source rack capacity 24 racks
  • Target rack capacity 1-3 racks
  • Input Loading CSV-file pick list from USB stick
  • Output CSV file of target rack content
  • Operation Room temperature
