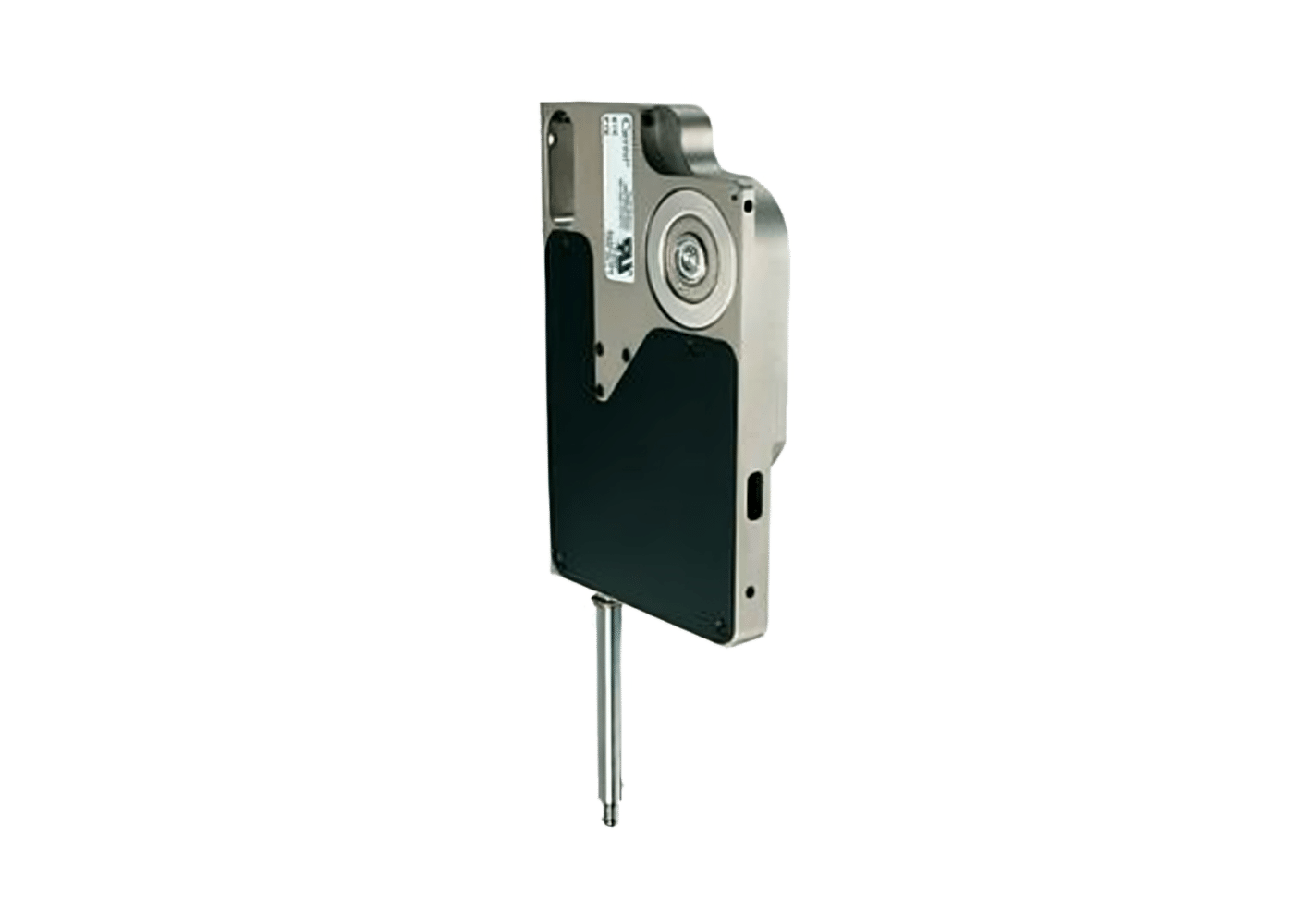

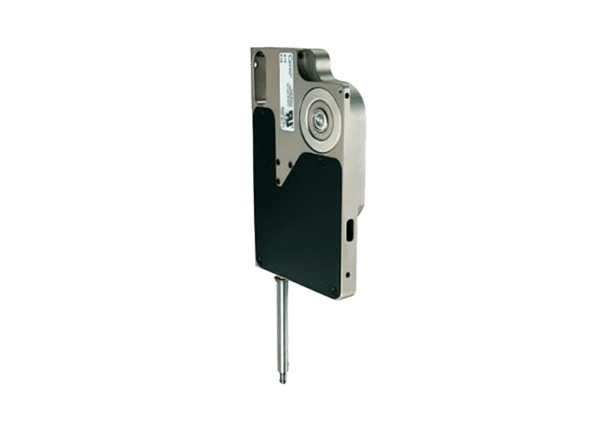

Scinomix Air Displacement Pipettor

SKU: SC2000-0865

Price on request

Upgrade the Scinomix AQ Aliquoting System

With the Scinomix Air Displacement Pipettor

Unparalleled accuracy
Maintenance free

Upgrade the existing Cavro® Air Displacement Pipettor (ADP) in your Automated Aliqouting System with a fully programmable pneumatic Scinomix Air Displacement Pipettor. This module can easily be installed and offers a maintenace free solution. It’s designed to be maintenance-free, using pre-programmed air volume calibrations and uses high-quality long-life components.

The power of the pneumatic APD comes in place with its high accuracy and precision down to a percentage of a microliter. This supports workflows like sample aliquoting, sample pooling, sample dilution, and reagent dispensing.

Ensure pipetting quality

with the Scinomix pneumatic ADP

The pneumatic ADP comes with a built-in pressure monitored liquid level detection (pLLD). With the Scinomix software combined it allows you to see liquid levels live. The pneumatic ADP also comes with user configurable detection settings, so you can tweak it to your liking.

The pneumatic ADP also features an optional integrated disposable tip sensor to support requirements for sample integrity and process security.

Product features

Precise Pipetting

With the Scinomix Air Displacement Pipettor you will be able to accurately pipet down to a percentage of a microliter

Maintenace free

Thanks to its high quality materials and pre-programmed air volume calibration the Scinomix Air Displacement Pipettor becomes maintenance free

Cost Saving

The Scinomix Air Displacement Pipettor is a cost-effective method of pipetting, because it offers valuable walk-away time and is maintenance free

Waste Management

A disposable tip ejection mechanism is incorporated into the design, allowing tips to be ejected by a single command

  • Pipetting Range < 5 – 1000 µl
  • Resolution 25 nl/increment (40,000 increments for 1000 µl)
  • Tip Compatiblity Tecan disposable tips (DiTis) 10, 50, 200, and 1000 µl
  • Dimensions 141 mm x 85 mm x 17 mm (body), ~100 mm probe + DiTi length
  • Weight < 400g
  • Power Requirement 24 VDC ± 10 %, 500 mA peak, 250 mA nominal
  • Liquid Level Detection (LLD) Pressure-based detection with tunable parameters (pLLD, optional) Compatibility and configurability for external capacitive detection (cLLD)
  • Operating Conditions 15–35 °C (59–95 °F), 20–85 % RH (non-condensing)
  • Storage Conditions -20 to 70 °C (-4°–158 °F), ≤ 85 % RH (non-condensing)
