With an optional 1D side code reader!

Micronic DR700 Rack Reader

Price on request

Compose your product

Clear
Request quote

Efficiently track your samples

Scan tubes straight from the freezer

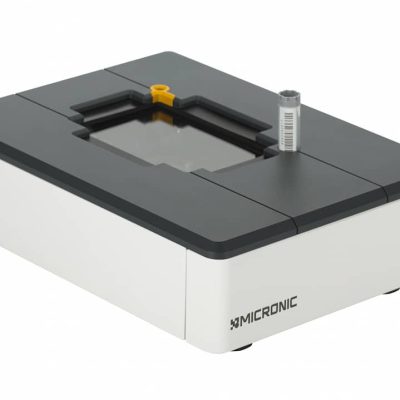

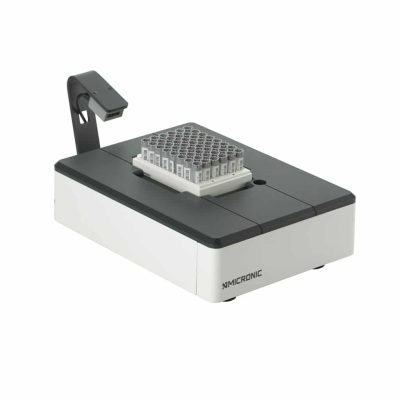

Micronic DR700 rack reader with 1D side barcode reader

The high-end Micronic DR700 Rack Reader reads whole racks of 2D Data-Matrix coded tubes. The reader features a CCD image sensor that ensures the highest accuracy 2D code reading, and an anti-frost system that reads tubes straight from the freezer.

The DR700 comes with the new Micronic Code Reader Software, which is easy to install, gives reliable code readings, and can be smoothly integrated into any laboratory sample database.

Frequently Asked Questions

The Micronic full rack scanners (DR500, DR505, DR700) require the Micronic Code Readers software to operate. This software is included with the purchase of a scanner and is available to download on the Micronic website. Single tube readers (DT300 and DT500) use keyboard wedge functionality and do not require dedicated software.
The full rack scanners (DR500, DR505, and DR700) can scan 2D Data-Matrix barcodes on the bottom of Micronic and other brand tubes. The single tube scanners (DT300 and DT500) can scan both 1D and 2D Data-Matrix barcodes.
Yes. The DR505 and DR700 scanners have an anti-frost surface that prevents condensation build-up on the scanning surface allowing racks recently removed from the freezer to be scanned.
All Micronic scanners come with a 5-year manufacturer’s warranty.
When a rack of tubes is scanned, the Micronic software generates an Excel file that includes: tube ID, rack ID, well position, time stamp, and other customizable fields.
Yes. Demos are available for potential customers. Please contact us for more details.
The DR500 rack reader by Micronic with the Micronic code reader software in the background

Product features

Compatibility

The DR700 is compatible with most brands of 2D Data-Matrix tubes.

Fast scan times

The DR700 can scan entire racks of tubes in 7 seconds and a single tube in 2 seconds.

Embedded software

The DR700 includes the new Micronic Code Reader Software.

Technology

The DR700 includes a CCD image sensor for capturing high-resolution photos of 1D and 2D codes.

  • Scan time 7 seconds (whole rack), 2 seconds (single tube)
  • Technology included CCD imaging technology
  • Tube & rack compatibility 96-, 48-, and 24-well format tubes & racks
  • Size 12.16" x 9.05" x 3.42"
  • Weight 10.69 lbs
  • Single tube reading function available
  • Optional 1D barcode reader available
  • Anti-frost system included

Satisfied customers

That's why we do it

"NBS Scientific worked with us to establish what our needs were and how we could use the best system to accomplish those needs. We were trying to improve our sample storage efficiency and tracking. Overall, I liked the quality, fit and finish, and the simple software of the products we purchased most."

"We were hoping to replace our old existing equipment. The technical expertise at NBS Scientific was excellent. We went through several options that solved my needs and we narrowed down a suitable option that fit our price range and features."

"NBS Scientific's customer service is excellent, and the product came quickly."

EUROIMMUN US

Need more information?

Don't hesitate to contact us.

Want to learn more about the DR700 Full Rack Reader? Eager to request a demo? Contact us today with your questions.
