Micronic DR710 Rack Reader

SKU: MP35232

Price on request

A compact code reader

With an active anti-frost system that can read and validate frozen samples

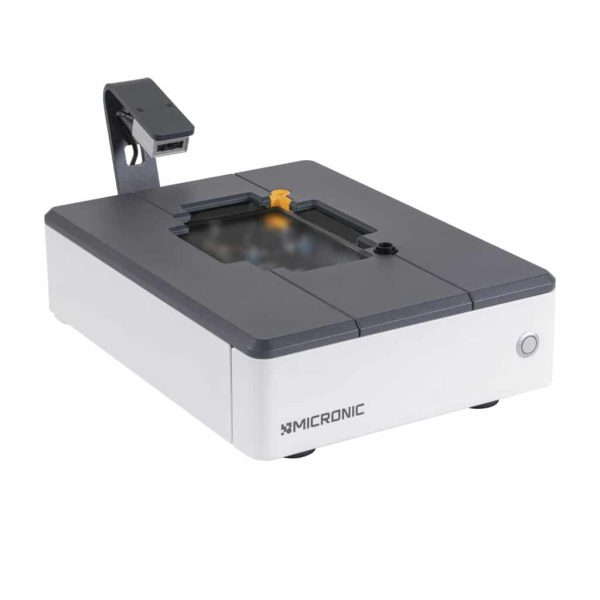

The DR710 is a rack reader from Micronic that can read entire racks of 2D Data-Matrix coded tubes in just 7 seconds. With a deep focus image sensor, the DR710 can ensure the highest accuracy 2D code reading even if the codes are partially compromised. It also includes a uniquely designed anti-frost system to help accelerate the processing of racks with frozen sample tubes.

Frequently Asked Questions

The Micronic full rack scanners (DR500, DR505, DR700, DR710) require the Micronic Code Readers software to operate. This software is included with the purchase of a scanner and is available to download on the Micronic website. Single tube readers (DT300 and DT500) use keyboard wedge functionality and do not require dedicated software.
The full rack scanners (DR500, DR505, DR700, and DR710) can scan 2D Data-Matrix barcodes on the bottom of Micronic and other brand tubes. The single tube scanners (DT300 and DT500) can scan both 1D and 2D Data-Matrix barcodes.
Yes. The DR710 has an active anti-frost system that helps process tubes straight from the freezer more quickly.
All Micronic scanners come with a 5-year manufacturer’s warranty.
When a rack of tubes is scanned, the Micronic software generates an Excel file that includes: tube ID, rack ID, well position, time stamp, and other customizable fields.
A Micronic 96-well format rack with lid of push cap tubes in freezer

Product features


The DR710 is compatible with most brands of 2D Data-Matrix tubes.

Fast scan times

The DR710 can read entire racks of tubes in 7 seconds and a single tube (in 96-, 48- or 24-well format) in less than 2 seconds.

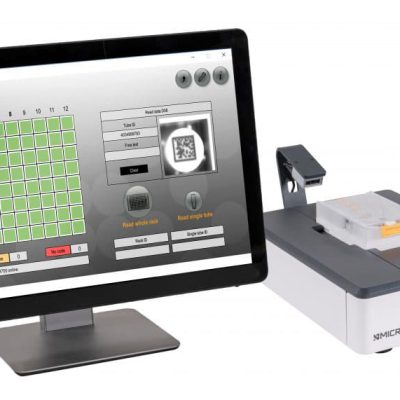

The DR710 includes the latest version of the reliable and easy-to-use Micronic Code Reader software.

5-year warranty

The DR710 comes standard with an industry leading 5-year warranty.

  • System requirements 2 x USB port
  • Technology included CCD imaging technology
  • Scan time 7 seconds (full rack); 2 seconds (single tube)
  • Dimensions 12.2 x 9.05 x 3.58 inch
  • Weight 11.68 lbs
  • Tube and rack compatibility 96-, 48-, and 24-well format tubes/racks
  • Voltage 115-230 V
  • Tube code reading 2D Data-Matrix

Satisfied customers

That's why we do it

"NBS Scientific worked with us to establish what our needs were and how we could use the best system to accomplish those needs. We were trying to improve our sample storage efficiency and tracking. Overall, I liked the quality, fit and finish, and the simple software of the products we purchased most."


Need more information?

Don't hesitate to contact us.

Want to learn more about the DR710 Rack Reader? Contact us today with your questions.

Request More Info - Equipment

  • Hidden
  • Hidden

Product downloads
